Model SH65JS Bunch Conductor Blocks Triple Bundle Stringing Block and Pull Board

Name: Model SH65JS Bunch Conductor Blocks Triple Bundle Stringing Block and Pull Board
Brand: Linkai
Price: 1 USD

Best Model SH65JS Bunch Conductor Blocks Triple Bundle Stringing Block and Pull Board wholesale

Brand Name : Linkai

Model Number : SH80S SZ3-1

Certification : ISO CE

Place of Origin : ZHEJIANG

MOQ : 5pcs

Price : Get the latest

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000pcs/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Model : SH80S SA3-1

Name : 3 bundle blocks

Type : Stringing blocks

Rated load : 5,10kn

Wheel : Nylon

Apply : Line construction

Contact Now

Transmission Line Blocks Triple Bundle Stringing Block And Pull Head Board

This triple bundle stringing block and pulley board can be adapted to the angle iron of less than 90 degrees. When applied in line construction, our product can pull three bundles of conducting wire with small cross section each time.

Product Table

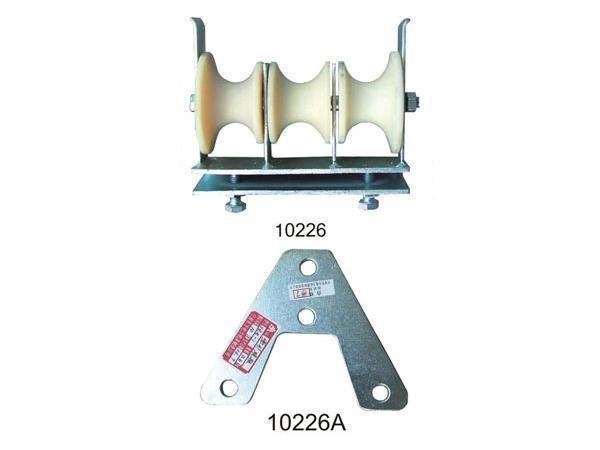

Item Number	Model	Rated Load (kN)	Weight (kg)	Remark
10226	SH80S	5	2.8	Nylon sheave
10226A	SZ3-1	10	1.6	δ8 (8mm thick)

Triple bundle stringing block and pull boardare made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.

Use: Applied in one pulling three bundlecross-sectional conductors in line construction and working with max angle iron∠90
